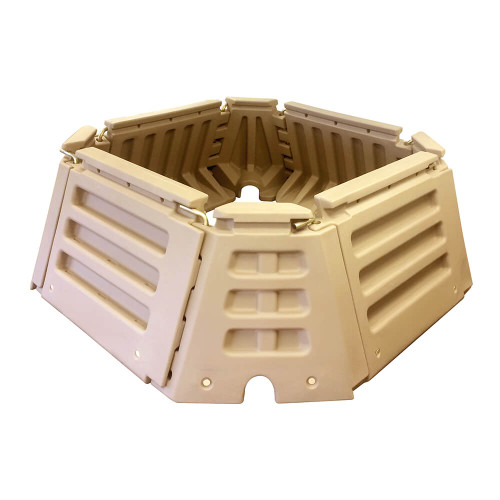

Stinger PolyBerm Fuel Tank Containment System with Cabling, Tan

SKU:

The Stinger PolyBerm is a hybrid, heavy-duty secondary containment system that takes advantage of the strength of molded plastic and blends it with the portability of industrial fabrics. No excavation or anchoring required Lightweight, modular design can install with as few as two people Compon… read more

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:

The Stinger PolyBerm is a hybrid, heavy-duty secondary containment system that takes advantage of the strength of molded plastic and blends it with the portability of industrial fabrics.

  • No excavation or anchoring required
  • Lightweight, modular design can install with as few as two people
  • Components are stacked and nested for shipping and storage
  • Interlocking joints
  • Can be used as a barricade in construction zones or as a safety barrier
  • Designed for use with ATPD 2262 liners
  • Flexible use in cold, hot, or wet environments
  • Removable sump liner for easy decontamination
  • No special tools required
  • Cabling included for catastrophic failure scenarios
  • Can be used as a permanent structure, or easily disassembled and transported
  • Ideal for bladders, large tanks, and transformers
  • Custom sizes available
Part Number  For Use With Dimensions
LxWxH ft. (m.)
Spill Capacity*
gal. (L.)
3'H Walls
45-21213-PB-L 10K Bladder 21x21x3 (6.4x6.4x0.9) 9,896 (37,460)
45-37373-PB-L 20K Bladder 37x37x3 (11.3x11.3x0.9) 30,722 (116,295)
45-37813-PB-L 50K Bladder 37x81x3 (11.3x24.7x0.9) 67,257 (254,565)
4'H Walls
45-21214-PB-L 10K Bladder 21x21x4 (6.4x6.4x1.2) 13,195 (49,948)
45-37374-PB-L 20K Bladder 37x37x4 (11.3x11.3x1.2) 40,963 (155,061)
45-37814-PB-L 50K Bladder 37x81x4 (11.3x24.7x1.2) 89,676 (339,460)

*The berm spill capacity is based on dimensions, low flow rate, a level surface and no displaced volume.

Regulations: EPA, SPCC, NPDES
