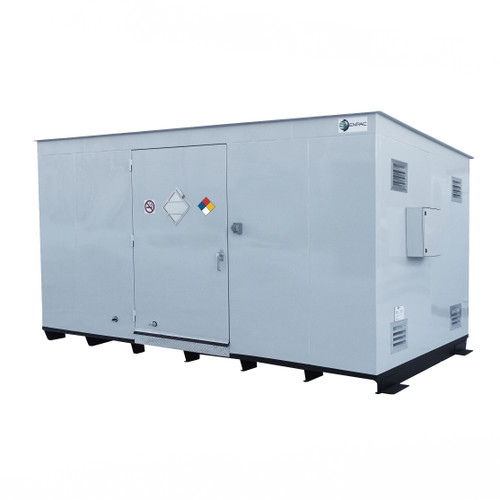

Steel HazMat Storage Building, 2 Hour Fire-Rated, White

Steel HazMat Storage Building, 2 Hour Fire-Rated, White

SKU: ENP-FR2

Steel HazMat Storage Buildings are essential for preventing leaks, spills, and fires, while safely storing hazardous materials, especially flammable or combustible liquids. These robust structures provide secure containment while adhering to safety regulations. ENPAC’s fire-rated storag… read more

Request For Quote Download Technical Data Sheet
american made
Steel HazMat Storage Building, 2 Hour Fire-Rated, White

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:

Steel HazMat Storage Buildings are essential for preventing leaks, spills, and fires, while safely storing hazardous materials, especially flammable or combustible liquids. These robust structures provide secure containment while adhering to safety regulations.

ENPAC’s fire-rated storage buildings are compliant with fire-rated regulations for flammable liquids. The lockable doors provide additional security and peace of mind.

Standard features:

  • Heavy-gauge steel continuously welded for strength and durability
  • Leak-tight spill containment sump
  • Galvanized grating
  • Floor loading of 250 psf.
  • Chemically-resistant interior coating
  • High-performance epoxy/polyurethane-coated exterior that can withstand winds up to 90 mph (145 kph) and other tough conditions
  • Self-draining pitched roof for elemental protection
  • Forklift accessibility for easy relocation
  • Three-point door latch with “L” handle for padlocks
  • Static ground connection inside and out
  • Permanent anchoring with seismic restraints
  • Passive ventilation
  • NFPA placard

Optional Features:

  • Interior/Exterior Lighting
  • Climate Control w/ Thermostat
  • Ramp
  • Shelving
  • Roll up doors
  • Mechanical Ventilation
  • Fire Extinguisher
  • Dry Chemical Fire Suppression
  • Sprinkler System
Part Number External Dimensions
LxWxH ft. (m.)		 Internal Dimensions
LxWxH in. (cm.)		 Spill Capacity
gal. (L.)
ENP-05059-FR2 5x5x9 (1.5x1.5x2.7) 56x56x92 (142x142x233)  70 (265)
ENP-05079-FR2 5x7x9 (1.5x2.1x2.7)  56x80x92 (142x203x233)  102 (386)
ENP-07079-FR2 7x7x9 (2.1x2.1x2.7) 80x80x92 (203x203x233) 150 (568)

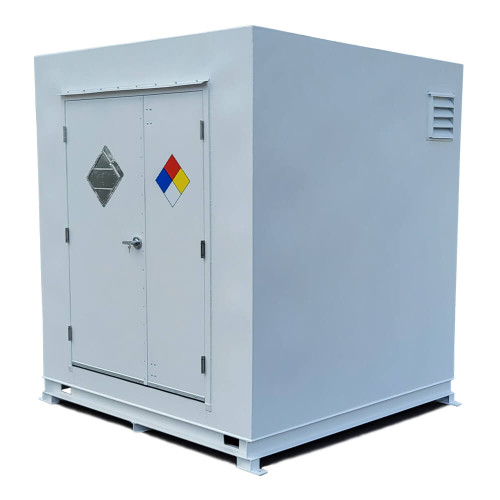

ENP-08089-FR2 8x8x9 (2.4x2.4x2.7) 90x90x92 (228x228x233) 201 (761)
ENP-10089-FR2 10x8x9 (3x2.4x2.7)  115x90x92 (292x228x233) 255 (965)
ENP-12089-FR2 12x8x9 (3.6x2.4x2.7)  139x90x92 (353x228x233) 310 (1,173)
ENP-14089-FR2 14x8x9 (4.2x2.4x2.7) 163x90x92 (414x228x233) 365 (1,382)
ENP-16089-FR2 16x8x9 (4.8x2.4x2.7) 161x90x92 (408x228x233) 420 (1,590)
 ENP-18089-FR2  18x8x9 (5.4x2.4x2.7) 185x90x92 (469x228x233)
 475 (1,798)
 ENP-20089-FR2  20x8x9 (6x2.4x2.7) 209x90x92 (530x228x233) 530 (2,006)
 ENP-22089-FR2  22x8x9 (6.7x2.4x2.7) 233x90x92 (591x228x233) 585 (2,214)
 ENP-24089-FR2  24x8x9 (7.3x2.4x2.7) 257x90x92 (652x228x233) 639 (2,419)
 ENP-26089-FR2  26x8x9 (7.9x2.4x2.7) 281x90x92 (713x228x233) 694 (2,627)
 ENP-28089-FR2  28x8x9 (8.5x2.4x2.7) 305x90x92 (774x228x233) 749 (2,835)
 ENP-30089-FR2  30x8x9 (9.1x2.4x2.7) 329x90x92 (835x228x233) 804 (3,043)

These buildings play a crucial role in maintaining safety and compliance, and they are 100% customizable to each customer’s needs and applications.

It is recommended to obtain proper approvals from the Authority Having Jurisdiction (AHJ) for the placement of any structure. Typical AHJ’s include local fire marshals, local code enforcement officials, local environmental departments, or insurance providers.

Material:
Steel
Regulations:
EPA 40 CFR 264.175, NFPA 30, NFPA 70, NFPA 400, IBC, UFC, UBC, OSHA

View Catalog Page:
Catalog Page 47, 48 - Steel Buildings

View Regulations:
Codes and Regulations
