Round, Cone Style Storm Sentinel® Catch Basin Insert, Adjustable, Black

SKU: 4340-CONE

Storm Sentinel® Catch Basin Inserts are the ideal products for preventing harmful pollutants from washing into storm drains. This framed model comes complete with an adjustable steel wire frame for simple installation and removal. Adjustable frame One-person installation and removal Sits be… read more

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:

Storm Sentinel® Catch Basin Inserts are the ideal products for preventing harmful pollutants from washing into storm drains. This framed model comes complete with an adjustable steel wire frame for simple installation and removal.

  • Adjustable frame
  • One-person installation and removal
  • Sits below the grate to be low-profile and unobtrusive
  • Geotextile fabric prevents contaminated sediment from washing into the drain
  • Standard versions feature overflow bypass ports for high-flow storm events, preventing storm water backup around drains
  • Reusable until product no longer maintains adequate water flow
  • No special tools required for installation
  • Complies with regulations when used in Storm Water Pollution Prevention Plans
  • Multiple sizes, models, and custom sizes available
  • US Patent No. 10,384,155
Part Number Min Dia.
in. (cm)
Max Dia.
in. (cm)
Absorption Cap
gal. (L)
Regular (Sediment, Trash, Debris)
4340-CONE 25 (63.5) 28 (71) N/A
4340-22-CONE 22 (56) 24 (61) N/A
No Overflow (Sediment, Trash, Debris)
4340-NO-CONE 25 (63.5) 28 (71) N/A
4340-22-NO-CONE 22 (56) 24 (61) N/A

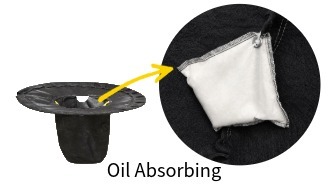

Oil Absorbing (Oils, Sediment, Trash, Debris)
4340-CONE-IB 25 (63.5) 28 (71) 0.23 (0.87)
4340-22-IB-CONE 22 (56) 24 (61) 0.23 (0.87)



 Installation Instructions:


Cone Depth:
17 in (43.18 cm)
Flow Rate:
90 gal. (340.69 L) per min. per sqft.
Load Capacity:
125 lbs. (57 kg)
Material:
8 oz. Polypropylene, Non-Woven Geotextile
Regulations:
40 CFR 122.26, EPA, SPCC, NPDES
