Railcar Track Pan

SKU:

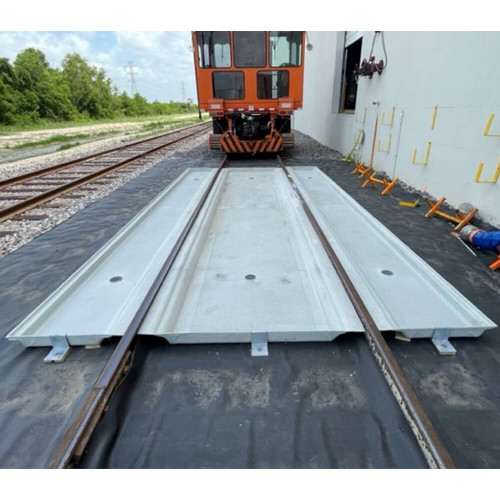

Railcar Track Pans are the strongest, most durable rail spill containment system available. Designed to contain small leaks, as well as large spills, without interfering with normal railcar operations. Available in 20’ lengths, connect together for desired length No modifications required Eas… read more

Request For Quote Download Technical Data Sheet

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Product Description
Specifications
Documents

Available in 20’ lengths, connect together for desired length
No modifications required
Easy installation and attachment to track with weldment fasteners
Low-profile and tight fit allows for continued use of railcars
Low maintenance
Long product life for permanent containment
Individual center and outrigger track pans available, or get the complete system
Fiberglass construction
Optional steel construction
Optional coatings for extreme chemical resistance
Optional PVC Manifold (Part# ENP 4PVCMNFD) to plumb units together

Part Number	Description	Containment Dimensions LxWxH ft. (m.)	Spill Capacity gal. (L.)	Weight lbs. (kg.)
ENP 500FS	20’ Full System (1 Center Pan, 2 Outrigger Pans)	See below	See below	400 (181.4)
ENP 500CP20	20’ Center Pan	20x4.7x4" (6x1.4x10 cm.)	220 (832.8)	182 (82.6)
ENP 500OR20	20’ Outrigger Pan	20x2.5x4" (6x0.7x10 cm.)	125 (473.2)	90 (40.8)
